Real-time in-cab monitoring of tyre pressure and temperature across up to 38 wheel positions, with instant alerts for low pressure, high pressure, and high temperature — keeping operators fully informed at all times.
By adding a TyreCop Hand-Held Reader Tool, your tyre-bay staff can walk around any machine or vehicle, anywhere, and quickly record the actual pressure of all or any tyre.
Everything you need in one kit — quick to install, easy to set up, and simple to pair sensors.
Monitors steer, drive and trailer positions in real time with long-range transmission.
Set your own high/low pressure and temperature thresholds, with active leak detection.
A clear backlit display wakes on motion and shows pressure and temperature at a glance.
RS232 / UART output lets you feed live data into a third-party telematics system.
A monitor, a receiver and a choice of rugged valve sensors, all engineered to survive the sites that destroy everything else.

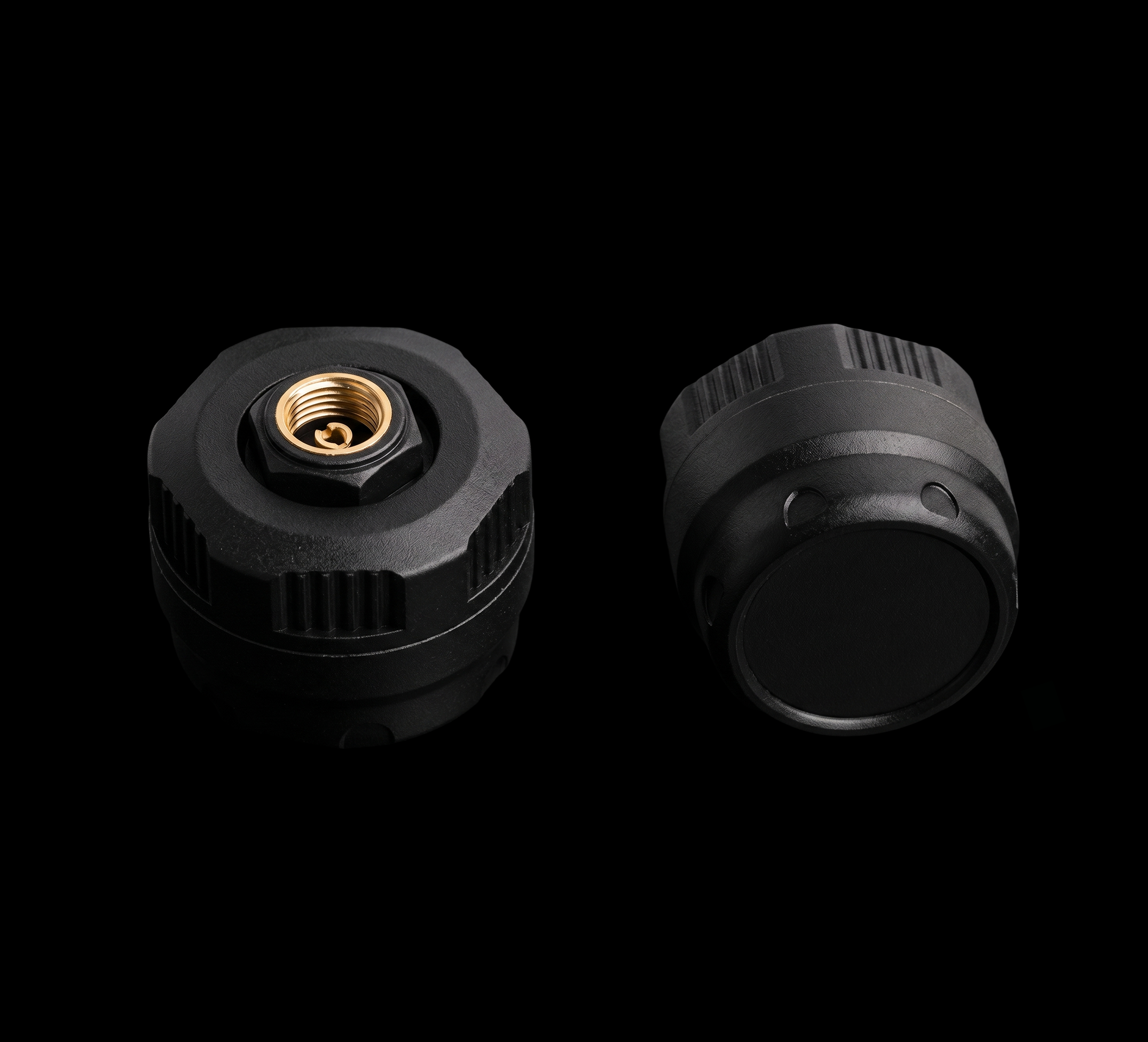

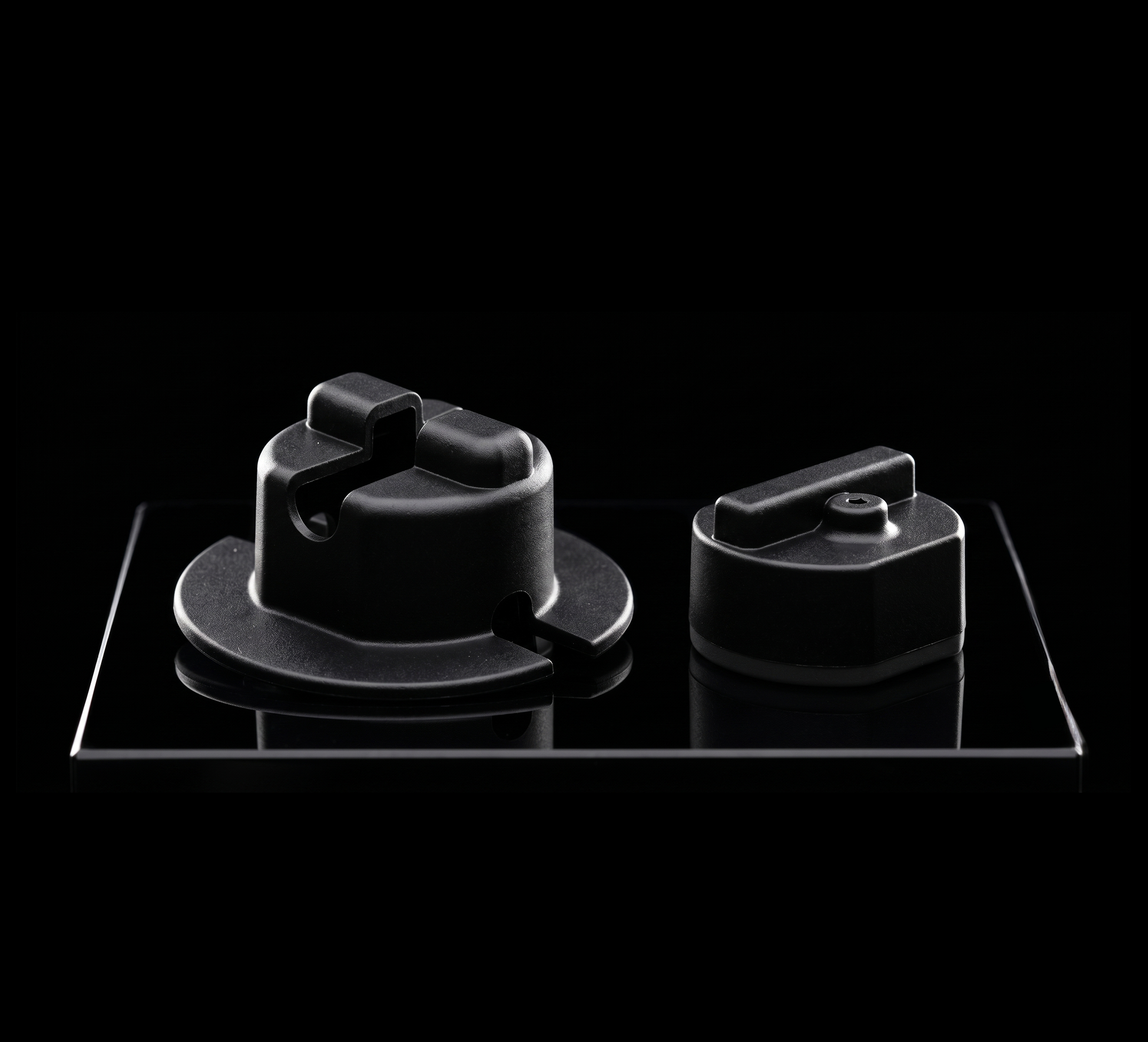

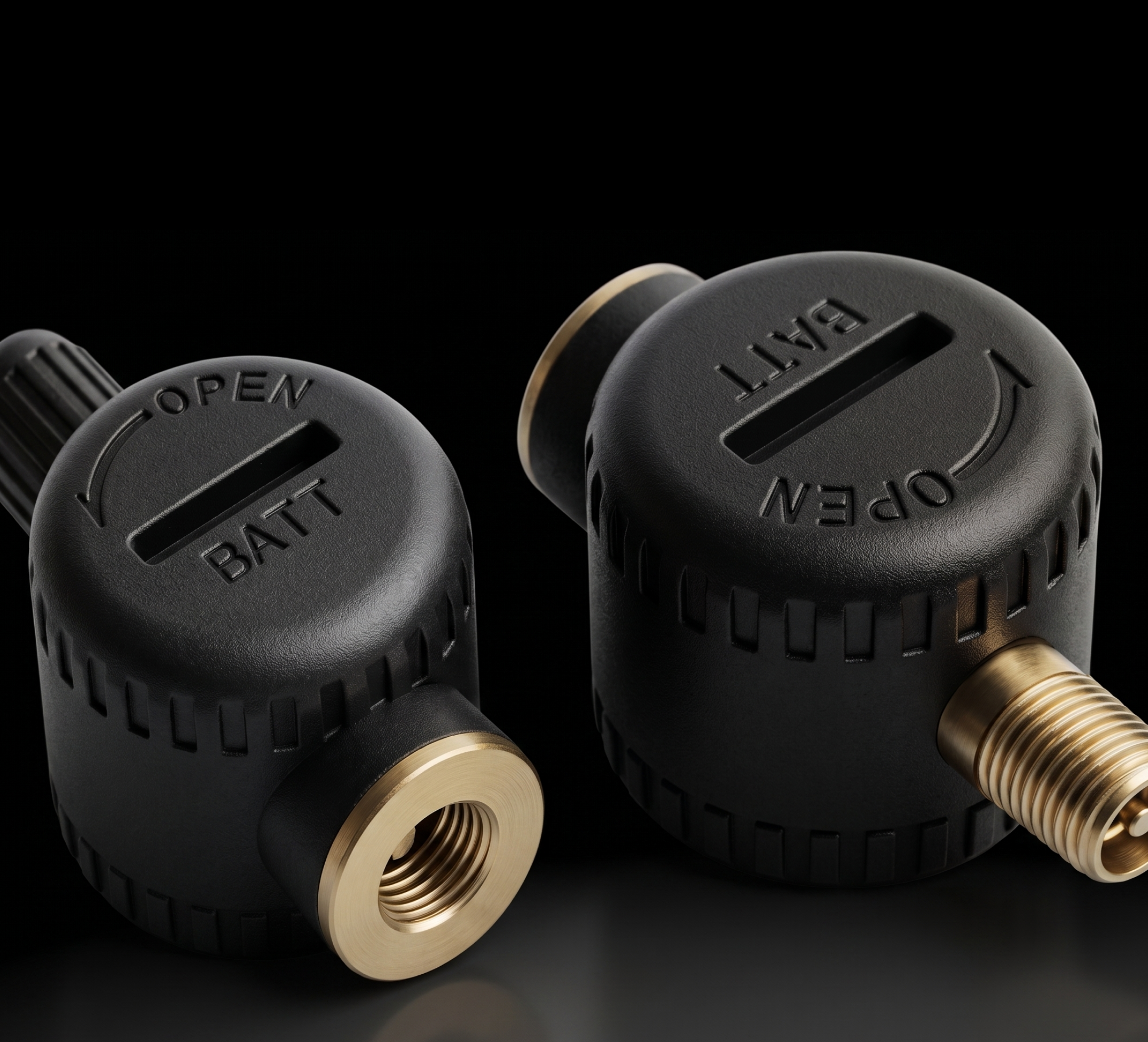

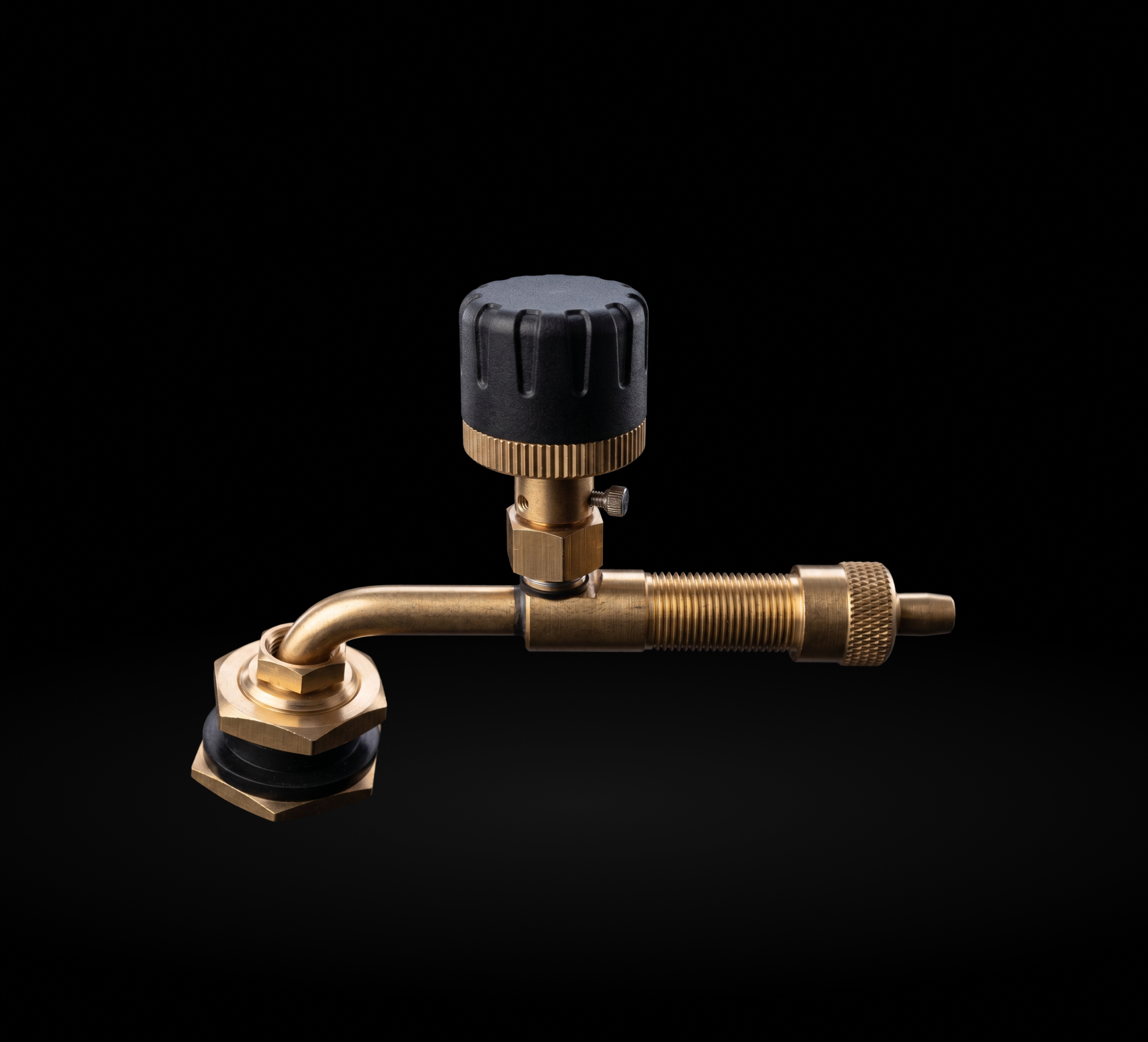

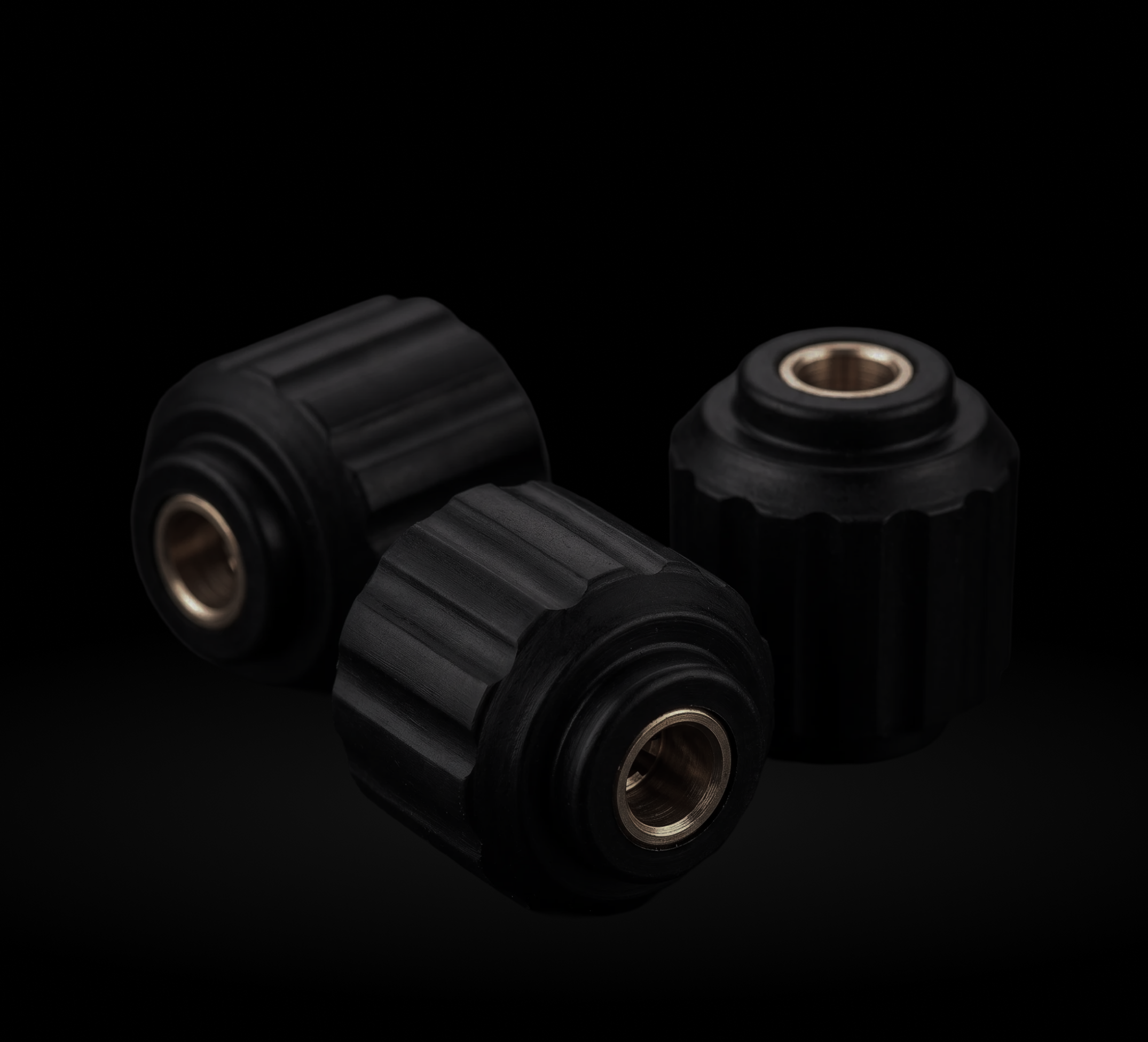

As an alternative to the Large Bore Valve Sensor OTR, we recommend the fitment of:
A complete, self-contained kit. Everything talks to everything straight out of the box, with no data costs.

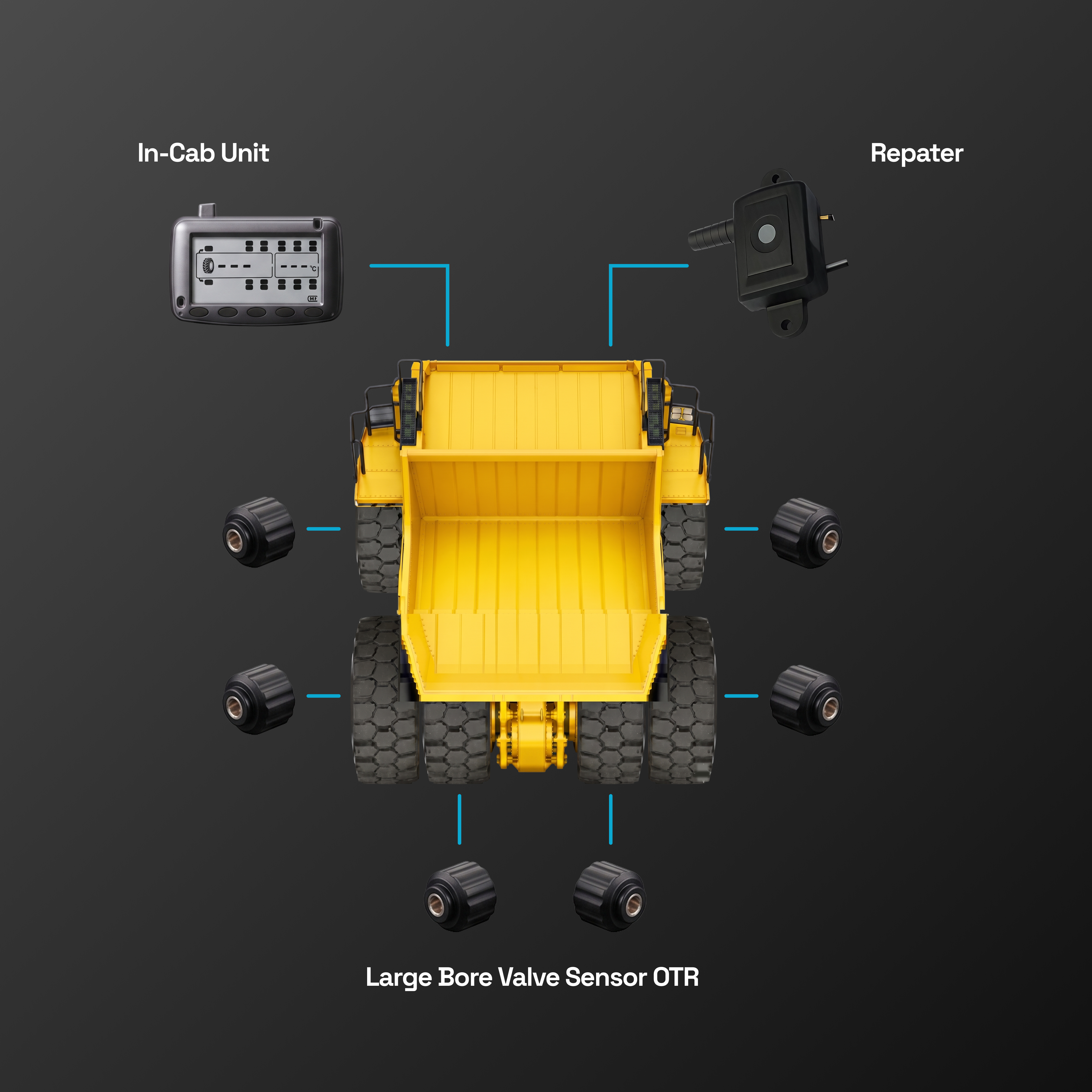

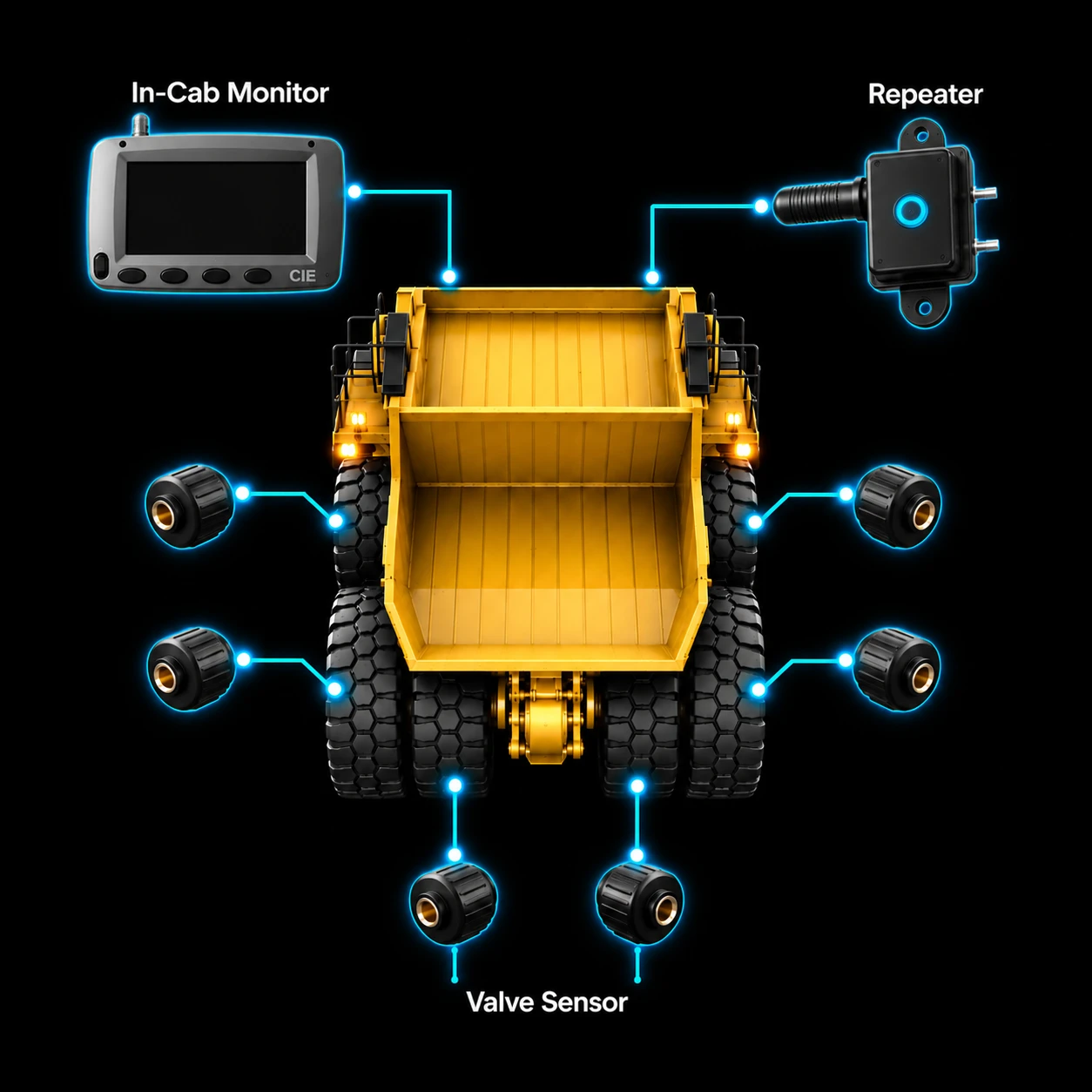

TyreCop Lite puts a sensor on every wheel, a controller on the machine and a display in the cab, all wired to work together from day one.
The cab display your operator reads at a glance, showing live pressure and temperature for every wheel.

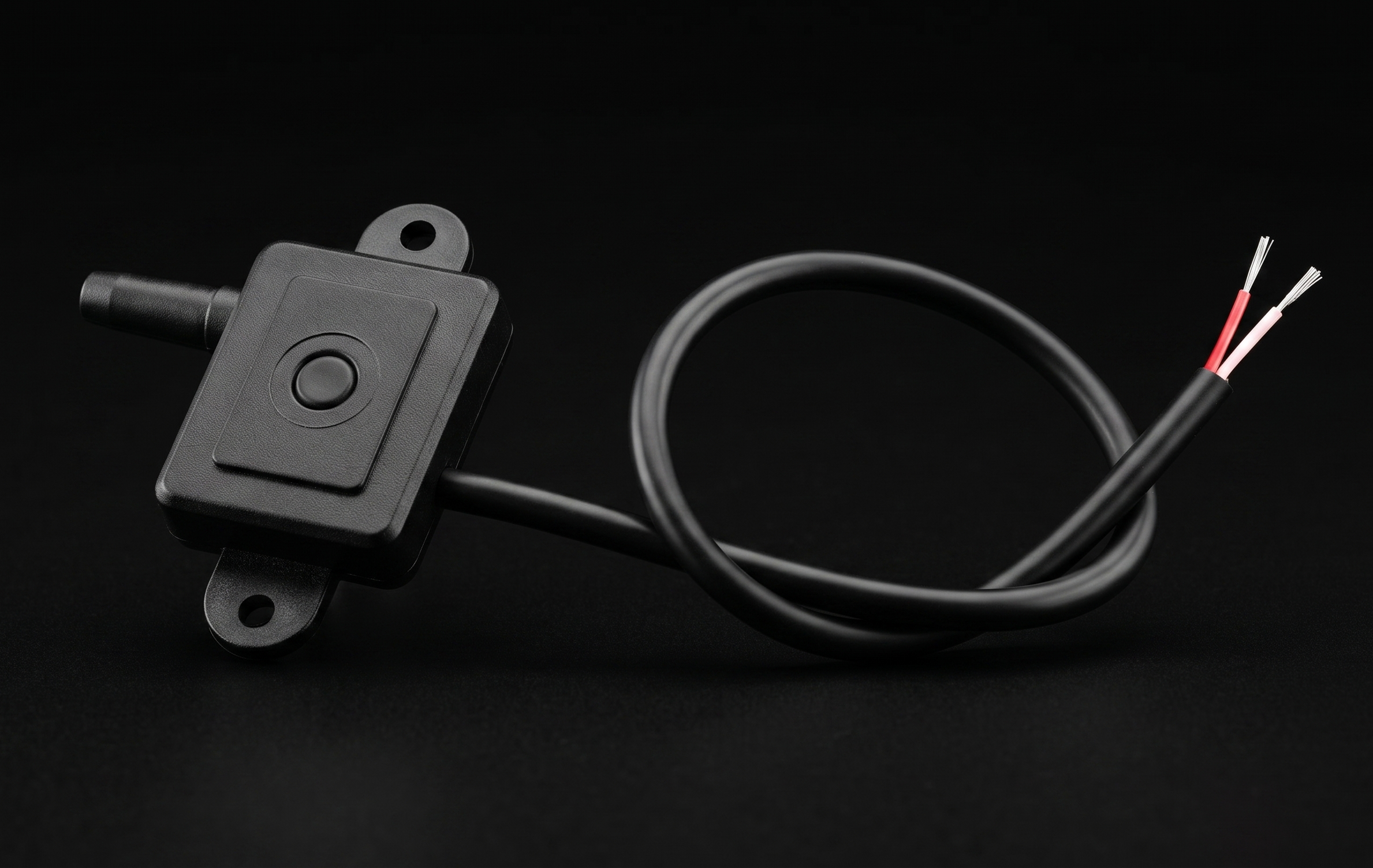

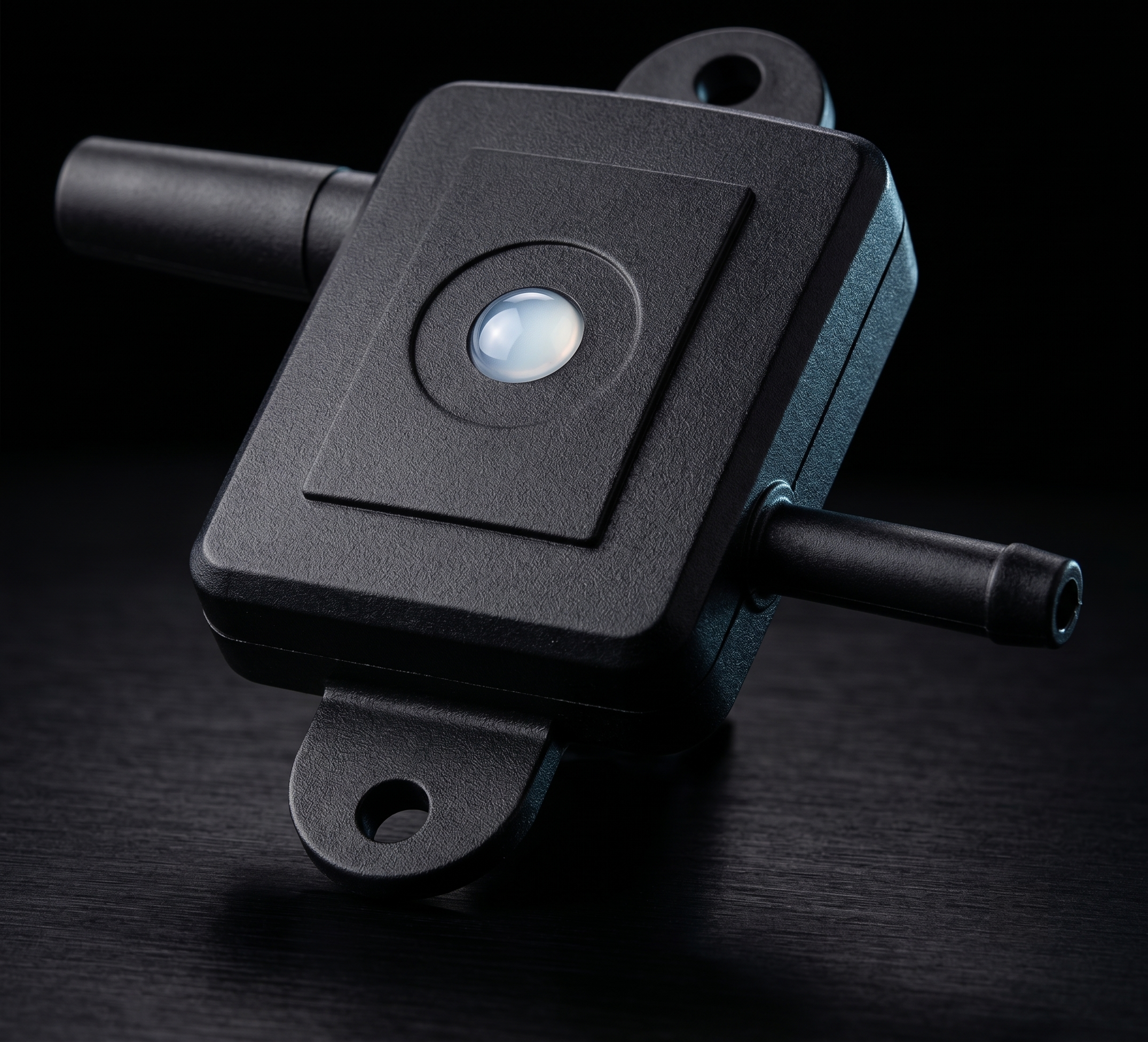

The on-board hub that gathers every sensor reading and drives the in-cab display.

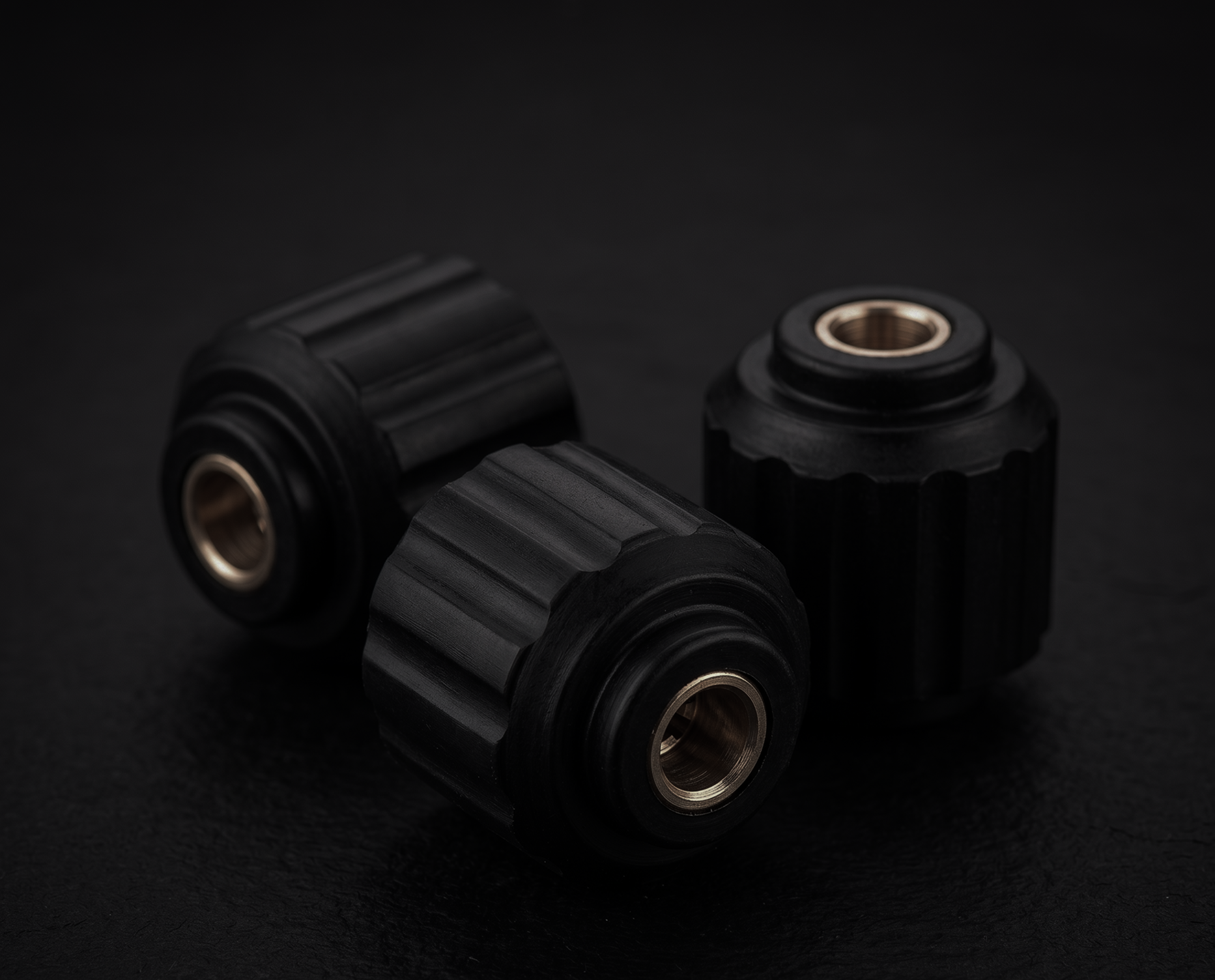

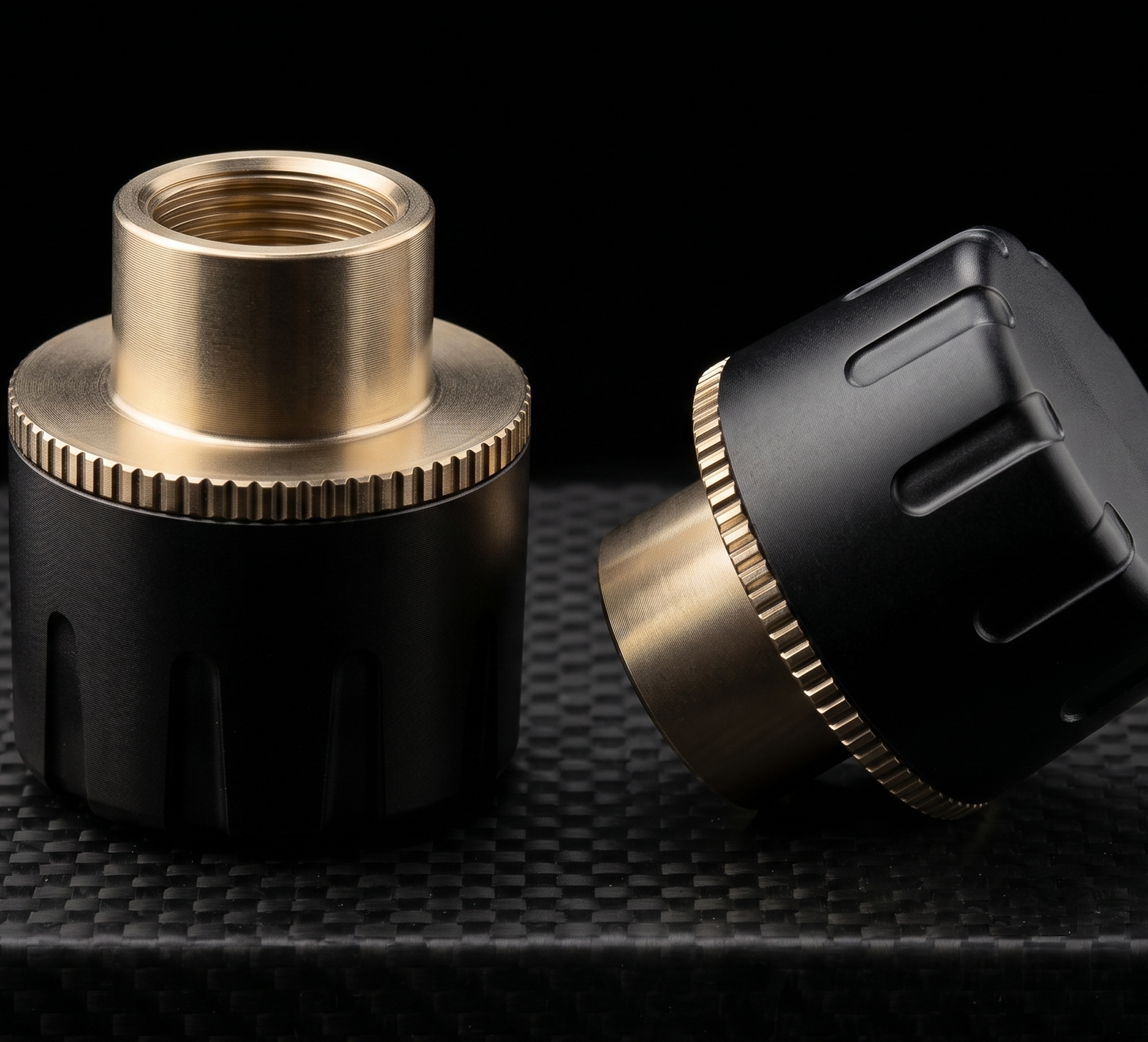

Rugged valve-mounted sensors on each wheel, built for off-the-road mining tyres.
| Model | Operational temp | Storage temp | Input voltage | Frequency | Size (mm) | Weight |
|---|---|---|---|---|---|---|
| TC-INCAB22-232 | -20 to 80°C | -30 to 85°C | DC 8-30V | 433.92 MHz | 116 × 68 × 25 | 138 g |
| TC-VSENOTR | -20 to 80°C | -30 to 85°C | N/A | 433.92 MHz | 24.4Ø × 23.1 | 16.8 g |
| TC-REC-BT | -20 to 80°C | -30 to 85°C | DC 8-30V | 433.92 MHz | 77 × 63 × 16 | 105 g |
Tell us how many vehicles you're running and we'll put together a quote.
Request a demo
