Motorcycle Motorcycle · Wireless TPMS · TC-MB-28B+E240

TyreCOP Motorcycle TPMS

A handlebar-mounted monitor and two valve sensors that watch pressure and temperature on both tyres and warn you the moment one drops out of range, because on two wheels a soft tyre is never just an inconvenience.

The sensors arrive pre-paired to front and rear, activate on the tyre's own air pressure and set their own alert thresholds. Built to GB 26149-2017.

Request pricing See specifications

2tyres monitored
0–6 Bar0–87 psi range
±0.1 Barpressure accuracy
USB-Crechargeable

Motorcycle rear wheel, sprocket and chain

Front & rear · live

Bar or psi · °C or °F

Why TC-MB-28B+E240

Both tyres, always watched.

Clamp it to the bar, screw the sensors on, and it does the rest itself.

Mounts on the handlebar

The bracket clips into the back of the display and clamps to the bar, then angles to suit your riding position.

Pairs itself

Sensors come decalled 1 for the front and 2 for the rear. Tighten one on and the tyre's own pressure activates and pairs it.

Alerts that set themselves

Whatever a tyre reads at pairing becomes its standard. It warns at 25% above, 15% below and 70°C.

Clock, light and buzzer

A clock on the face, an alert LED and an audible warning. Press any button to silence it. The tyre keeps flashing until it's fixed.

What's in the box

Everything you need.

Monitor and two sensors, plus the handlebar mount, a sensor battery replacement tool, a hex wrench, two anti-theft nuts and two spare O-rings.

Handlebar Monitor

TC-MB-28B+E240

54 × 54 × 26 mm, 58 g
USB Type-C charging, DC 5V
Light sensor, alert light and two buttons on the face
Supplied with the handlebar mount

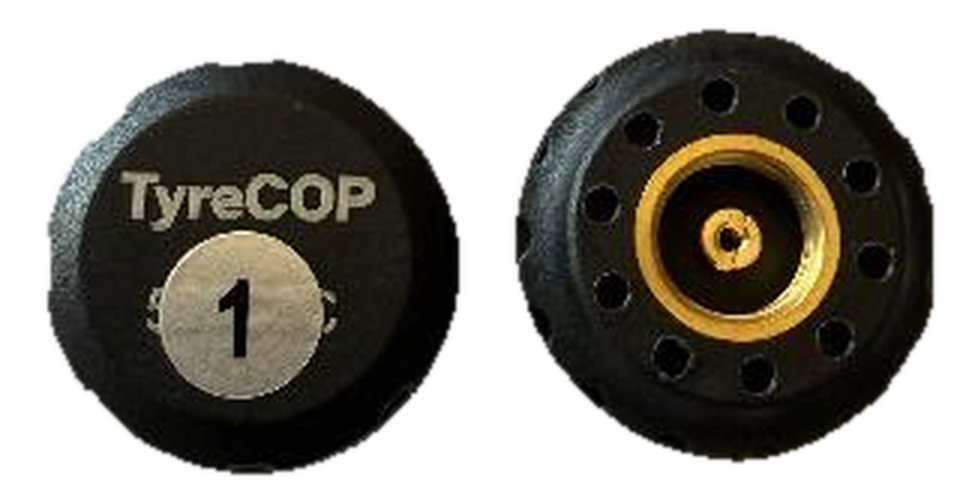

TyreCOP motorcycle valve sensor, front and rear views showing the position decal and the brass valve thread

Valve Sensors ×2

Pre-paired · anti-theft

21 mm dia. × 13.5 mm, 9 g each
Decalled 1 for the front tyre, 2 for the rear
Replaceable battery, with the tool in the box
Screws onto the existing valve, no tyre removal

Fitting

On the bike in minutes.

Inflate both tyres to their correct pressure first. Whatever a tyre reads at pairing becomes the standard its alerts are measured against.

The monitor

Slide the bracket into the slot on the back of the display and secure it
Loosen the bracket screws, fit it to the handlebar, then tighten
Adjust the angle for the best view from the saddle
Hold the Right Button 3 seconds to switch on
Hold the Left Button 3 seconds to set the clock: Right adjusts, Left moves on, hold Left to save

The sensors

Screw the anti-theft nut onto each valve, if you're using them
Fit sensor 1 to the front valve and sensor 2 to the rear, tightened firmly
Lock each anti-theft nut anticlockwise against the sensor with the spanner
Tyre pressure activates the sensor. The monitor beeps and the reading replaces the dashes
The system records that pressure as the tyre's standard value

Re-programming

Hold both buttons 3 seconds. The front tyre icon flashes
Press Left or Right to pick the position to program
Fit the sensor; the tyre's air pressure activates it and it sends its ID
The monitor beeps and shows the pressure once it has the ID
Hold the Right Button 3 seconds until a long beep to save and return
Two minutes of no input exits without saving

In use

What it tells you, and how.

When a sensor raises an alarm the tyre's reading and its LED flash together with an audible warning. Any button silences the buzzer; the flashing stays until the tyre is sorted.

Alerts

High pressure: 25% above standard
Low pressure: 15% below standard
High temperature: 70°C (158°F)
Fast leak
Low sensor battery
Sensor lost

Factory defaults

Reference pressure: taken from the tyre at pairing
Pressure unit: psi
Temperature unit: °F
High-temperature alert: 158°F (70°C)

Controls

On / off: hold the Right Button 3 seconds
Set the clock: hold the Left Button 3 seconds
psi ↔ Bar: press the Right Button five times
°F ↔ °C: press the Left Button five times
Programming mode: hold both buttons 3 seconds
Silence an alert: press any button

Specifications

The detail.

Monitor

Operating temperature	−20°C to 80°C
Storage temperature	−30°C to 85°C
Input voltage	DC 5V, USB Type-C
Frequency	433.92 MHz
Dimensions (l × w × h)	54 × 54 × 26 mm
Weight	58 g
Units	Bar or psi · °C or °F

Valve sensors

Pressure range	0–6 Bar (0–87 psi)
Pressure accuracy	±0.1 Bar (±1.5 psi)
Temperature accuracy	±3°C
Operating temperature	−40°C to 80°C
Storage temperature	−40°C to 85°C
Input voltage	DC 3V
Frequency	433.92 MHz
Transmission power	<10 dBm
Dimensions	21 mm dia. × 13.5 mm
Weight	9 g
